BOATBUILDING & MARINE
CNC-cut plywood, timber and suitable sheet components for boatbuilders, shipwrights, designers, repairers and marine trades.
We produce frames, bulkheads, fitout parts, curved components, replacement parts, patterns and organised boat-kit sets from reliable files, drawings, dimensions or approved design information.
Our marine work is backed by practical wooden boatbuilding, shipwright, CAD and CNC experience.
CNC Cutting for Boatbuilding & Marine Projects
PRACTICAL MARINE EXPERIENCE
Boatbuilding Knowledge Behind the CNC Work
Boat parts are not simply shapes cut from plywood.
Their position in the vessel, material, grain direction, orientation, adjoining components, assembly sequence and final use can all affect how they should be prepared and machined.
Williamstown CNC Works is operated by third-generation shipwright Nick Atkins, with more than 20 years of CAD and CNC experience and a working background in wooden boatbuilding.
That experience now concentrates on CNC-cut components, detailed boat kits and production support rather than routinely taking on complete vessel builds.
We understand how flat parts need to relate to the structure being built, while working from information approved and supplied by the customer, boatbuilder or designer.
Read more about Williamstown CNC Works workshop and boatbuilding background.
MARINE PROJECT PATHWAYS
What Type of Marine Work Do You Need?
Some marine projects arrive as finished design files. Others begin with drawings, a physical component, a kit design or an ongoing production requirement.
Choose the pathway that most closely matches the work you have now.
New Boat Components
Frames, bulkheads, floors, hull and deck parts, cabin components, joinery and other defined parts for new boatbuilding projects.
Repairs, Refits and Replacement Parts
Replacement plywood, timber and fitout components produced from dependable drawings, dimensions, patterns or assessable existing parts.
Wooden Boat Kits
Licensed kits, authorised customer designs and detailed kit-production work developed with boatbuilders and marine designers.
Marine Trade and Designer Support
Confidential file preparation, test components, grouped project sets and repeat CNC production for marine professionals.
MARINE COMPONENTS
Boat and Marine Parts We Can Produce

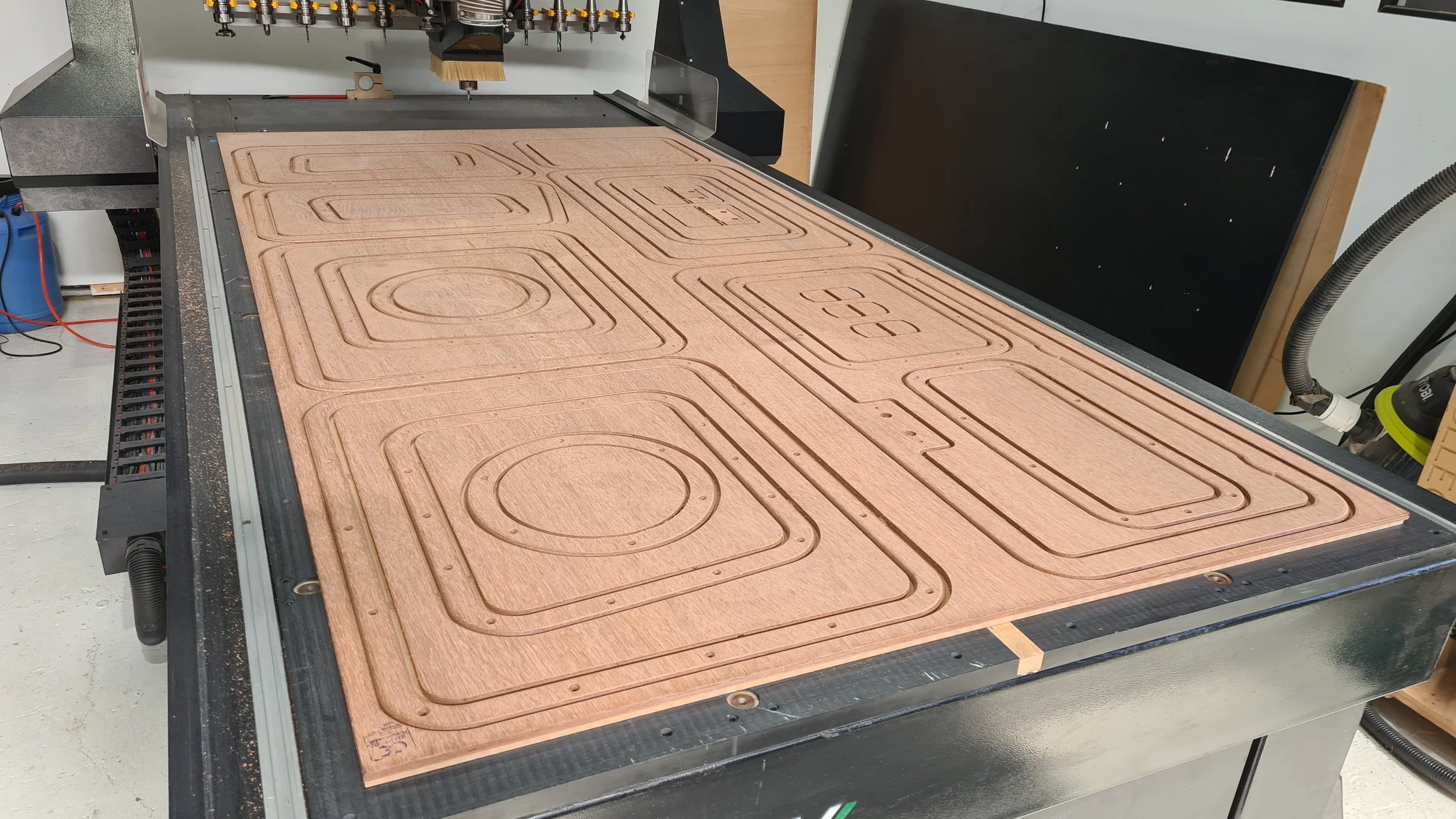

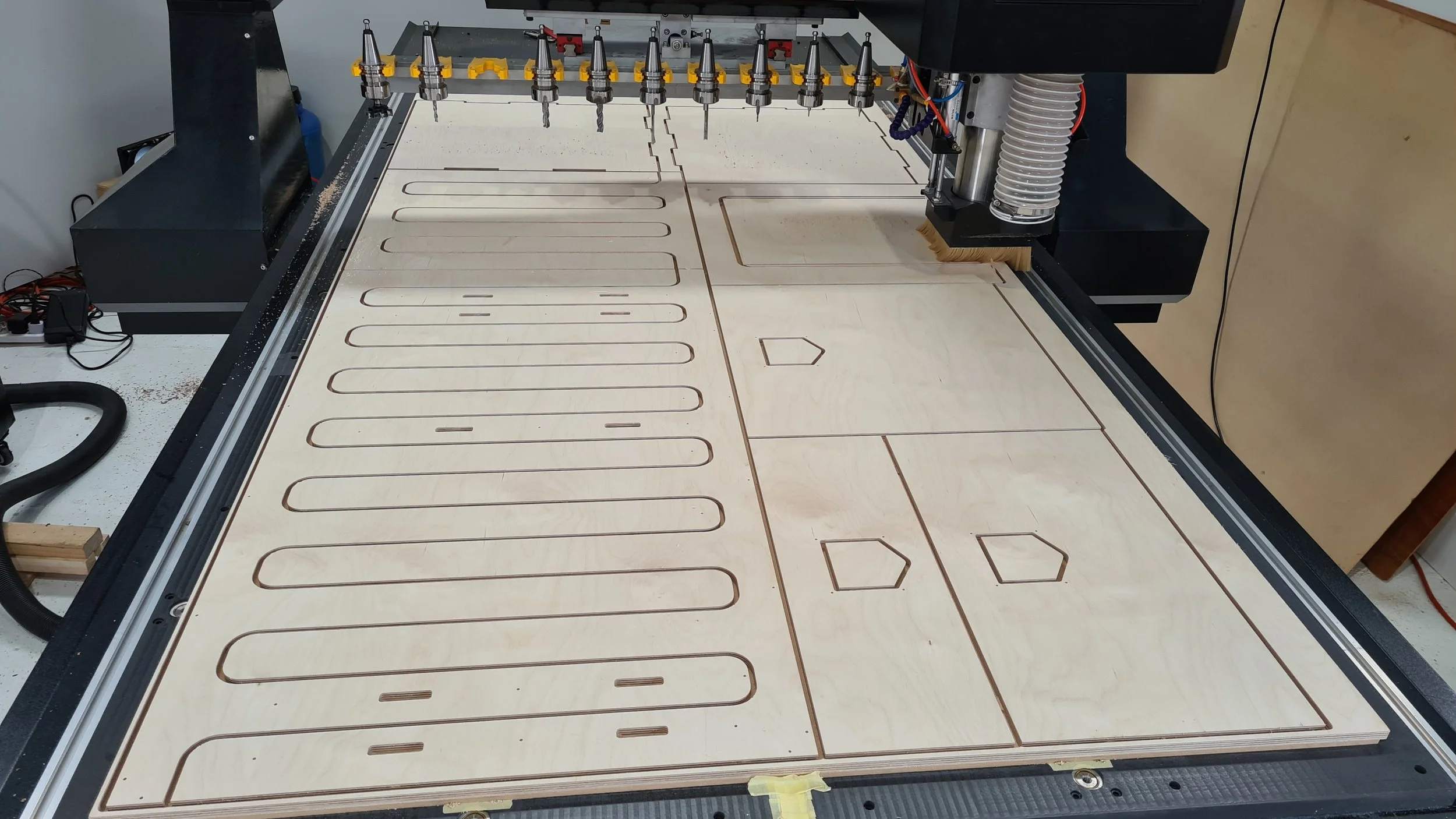

We cnc cut plywood, timber and suitable sheet components for new builds, repairs, refits and marine fitouts. The production method depends on the files or reference information supplied, the material, the required machining and how the parts will be used.

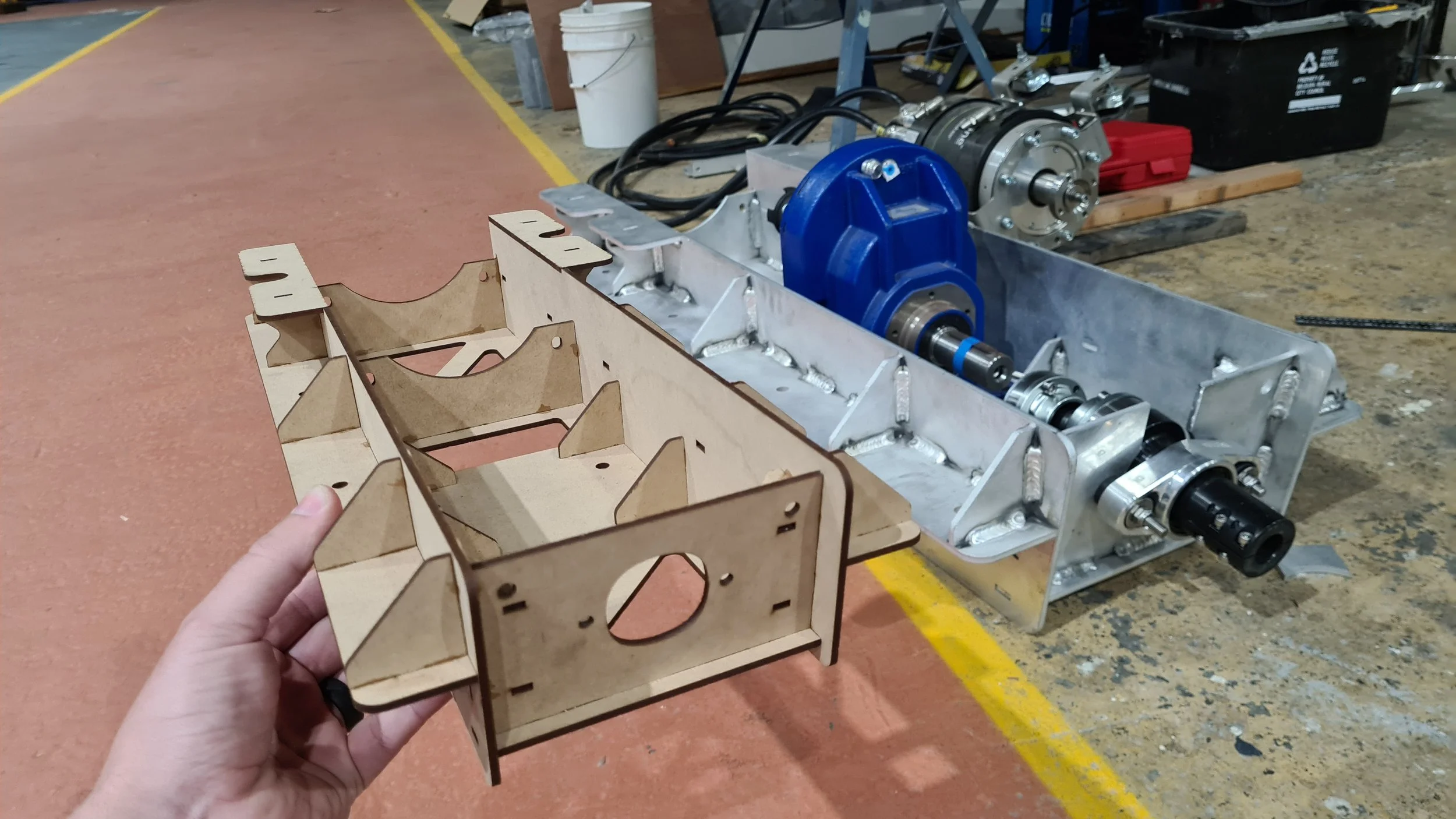

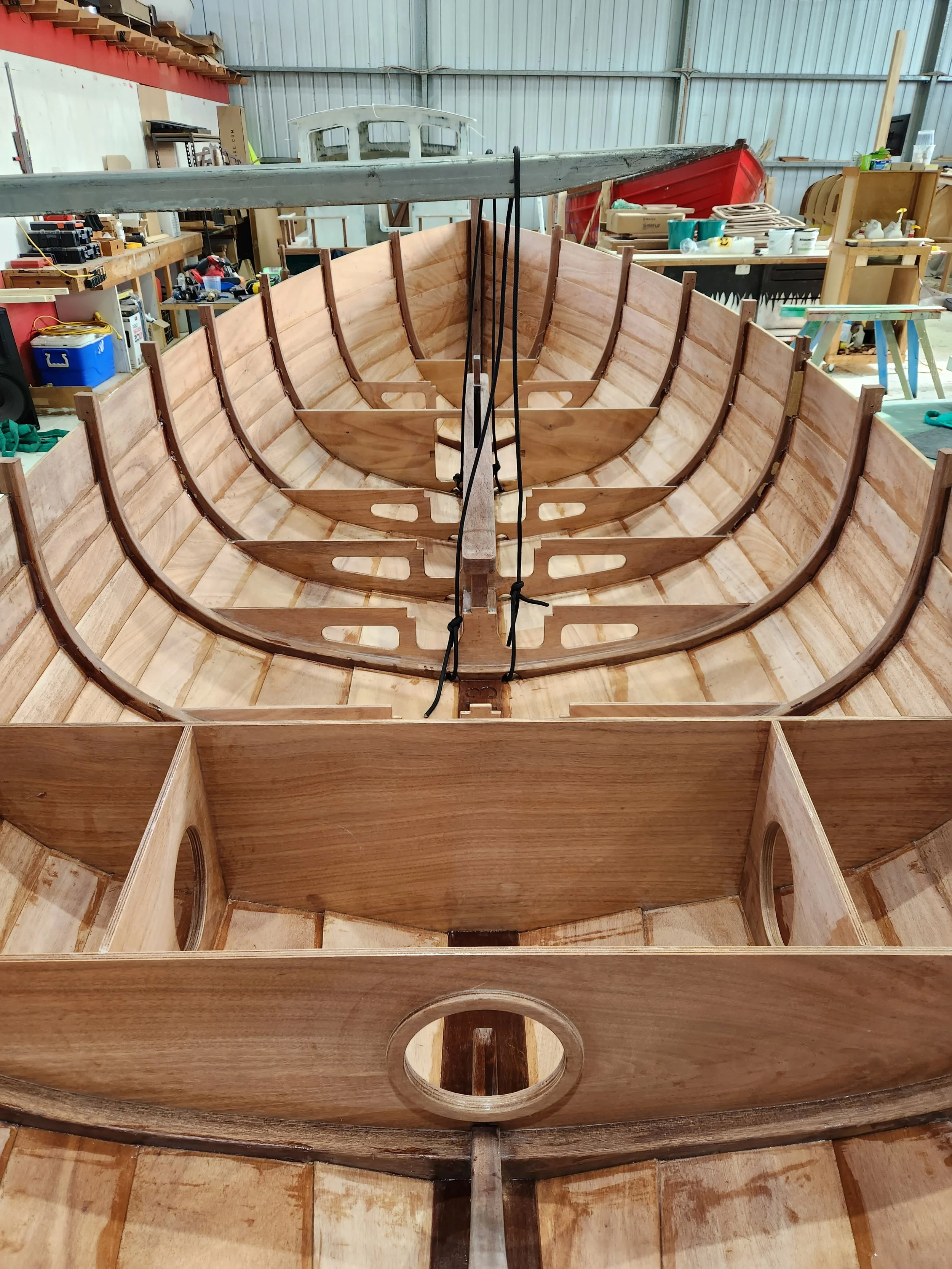

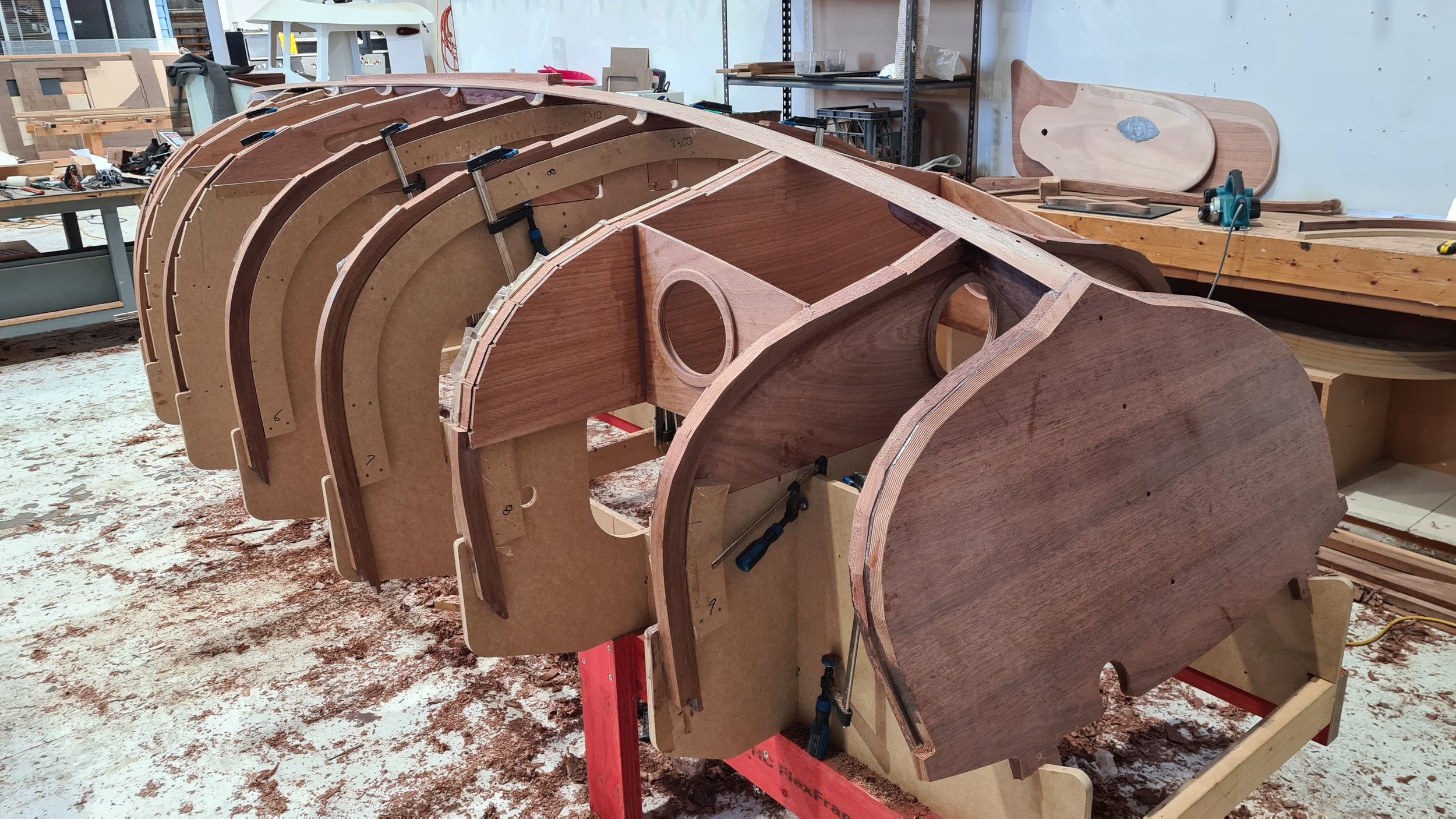

Frames, Bulkheads and Floors
CNC-cut structural and internal components produced from approved design geometry, including locating holes, slots, rebates and other specified machining.
Hull, Deck and Cabin Parts
Shaped panels, deck components, cabin sides, roofs, webs, gussets and related parts prepared for the customer’s own assembly and installation.

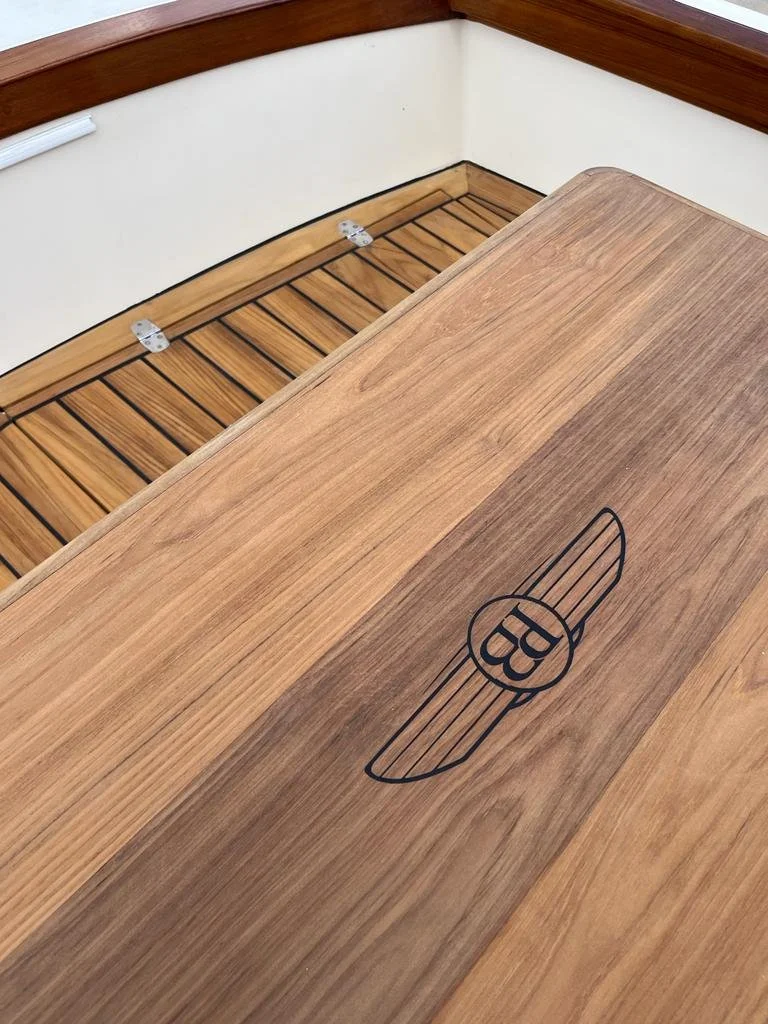

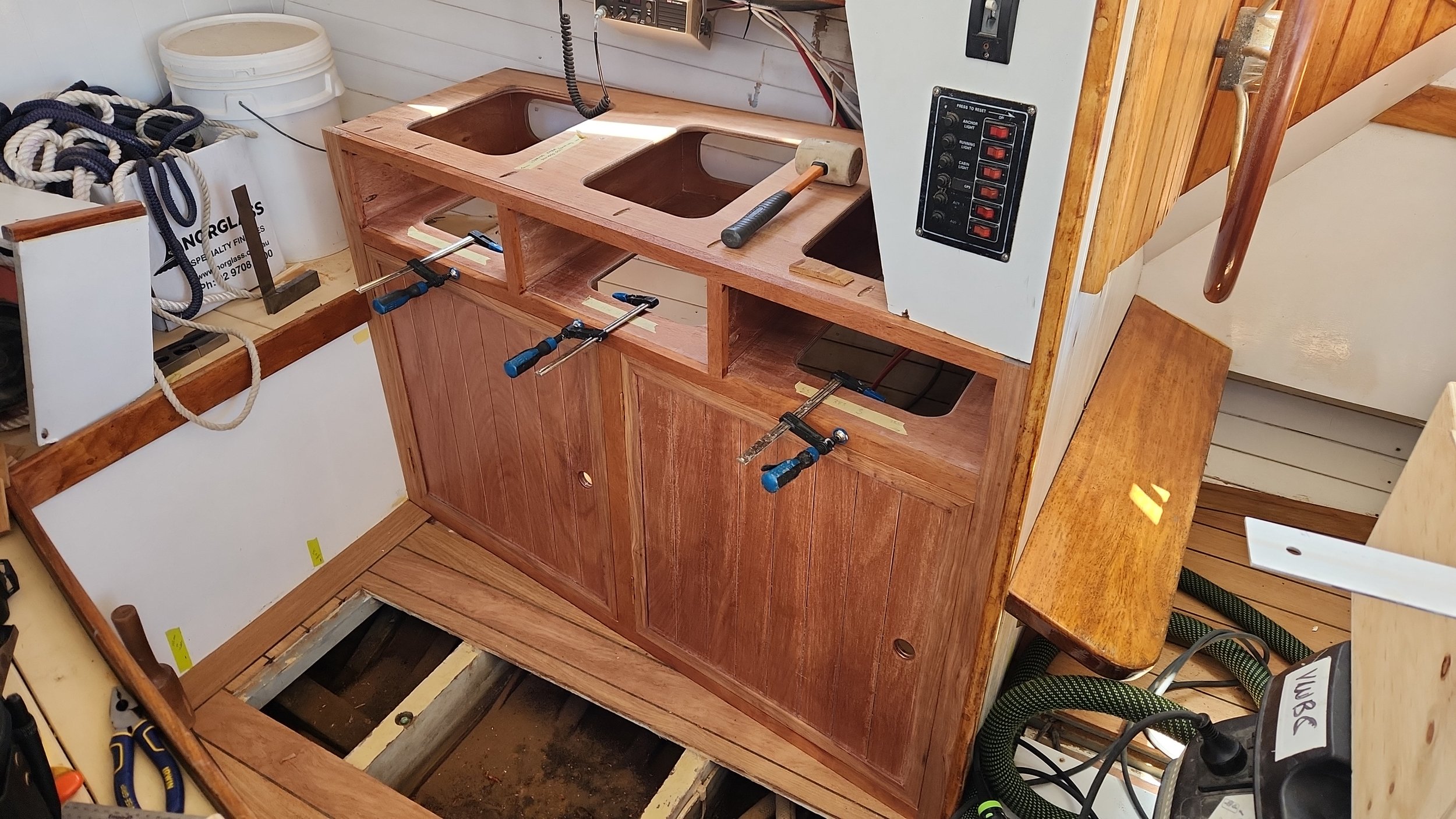

Marine Joinery and Fitout
Berth components, lockers, cabinetry parts, access panels, liners, backing pieces and shaped fitout components for new work and refits.

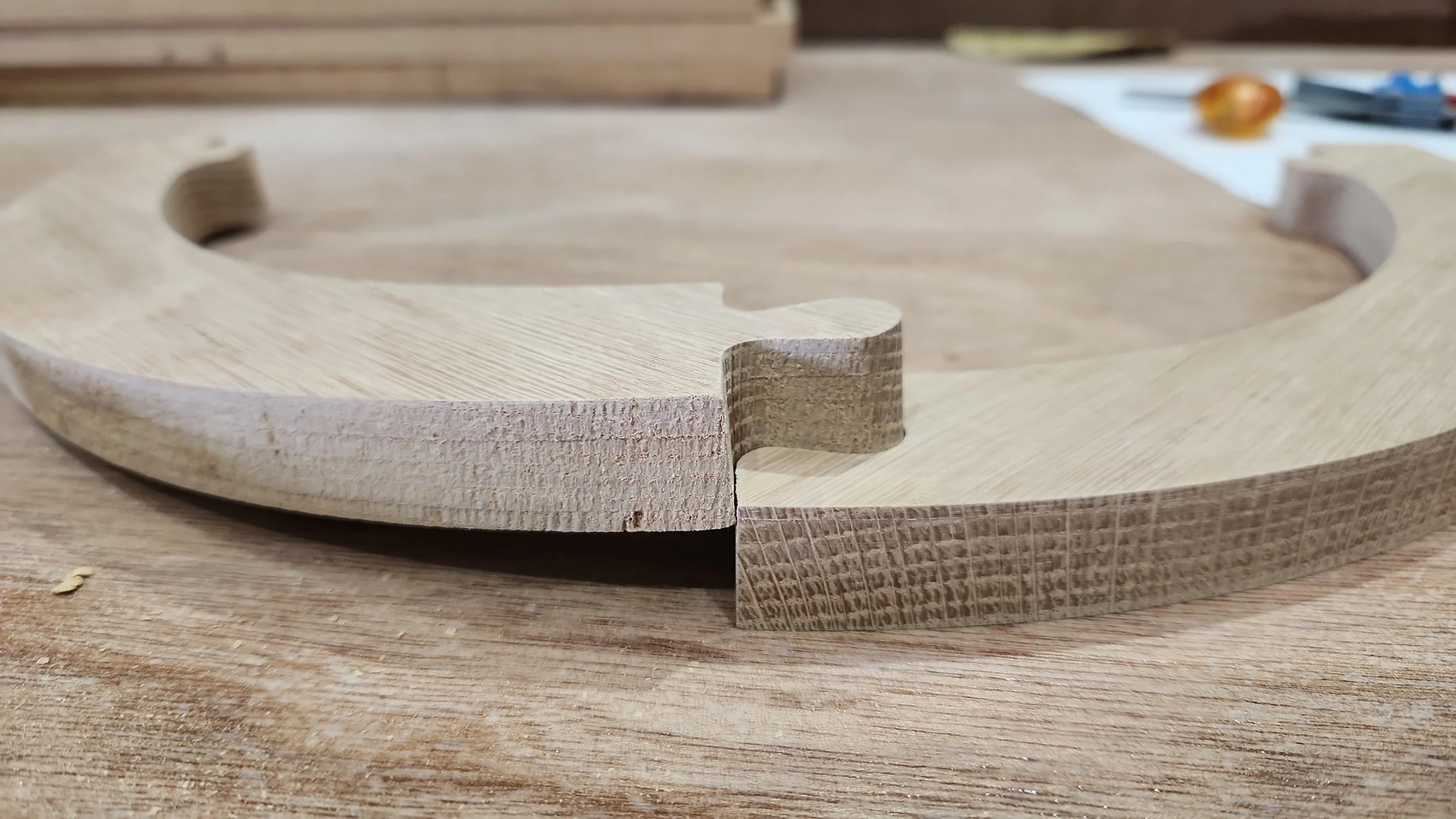

Curved Plywood and Timber Parts

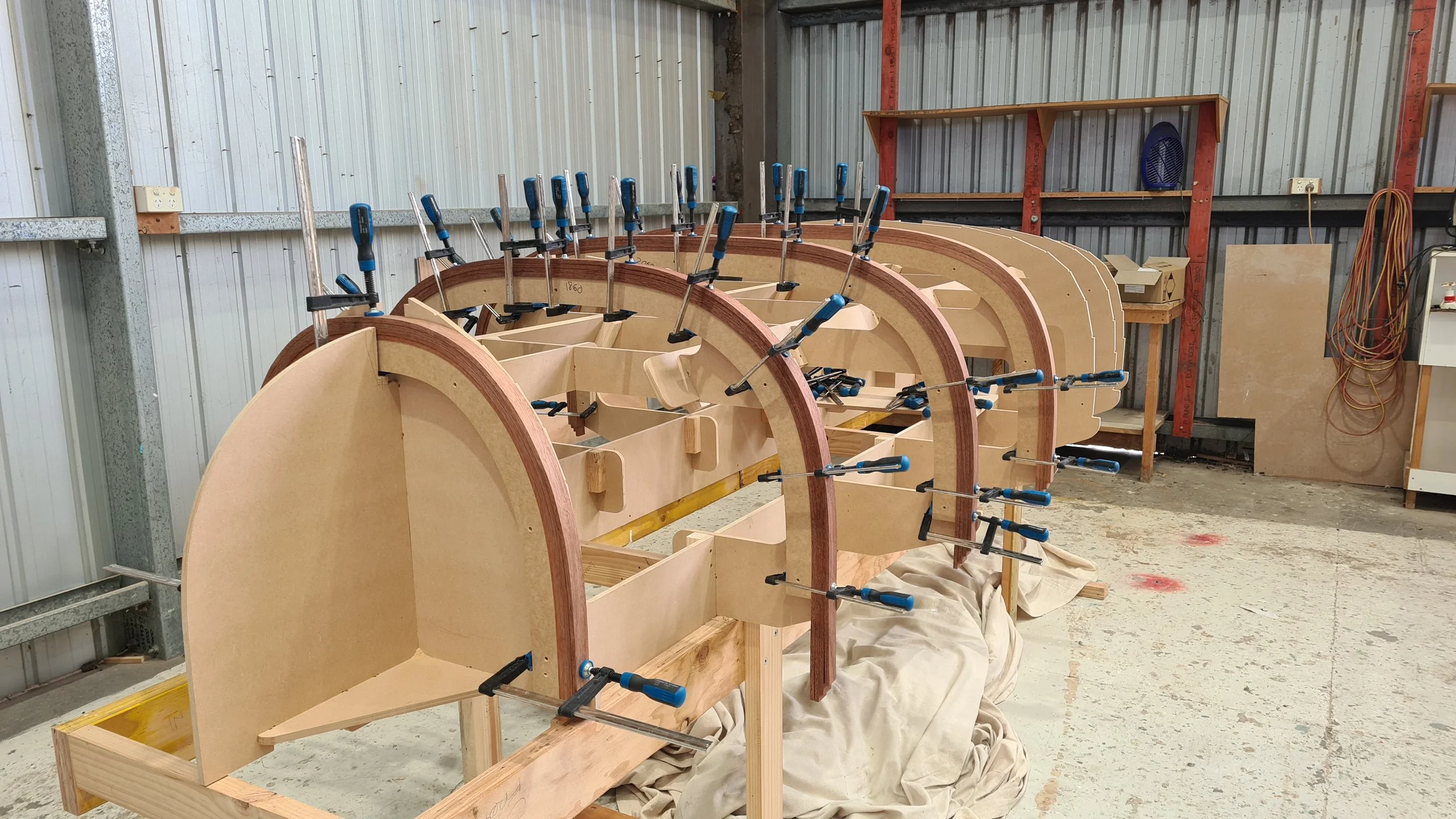

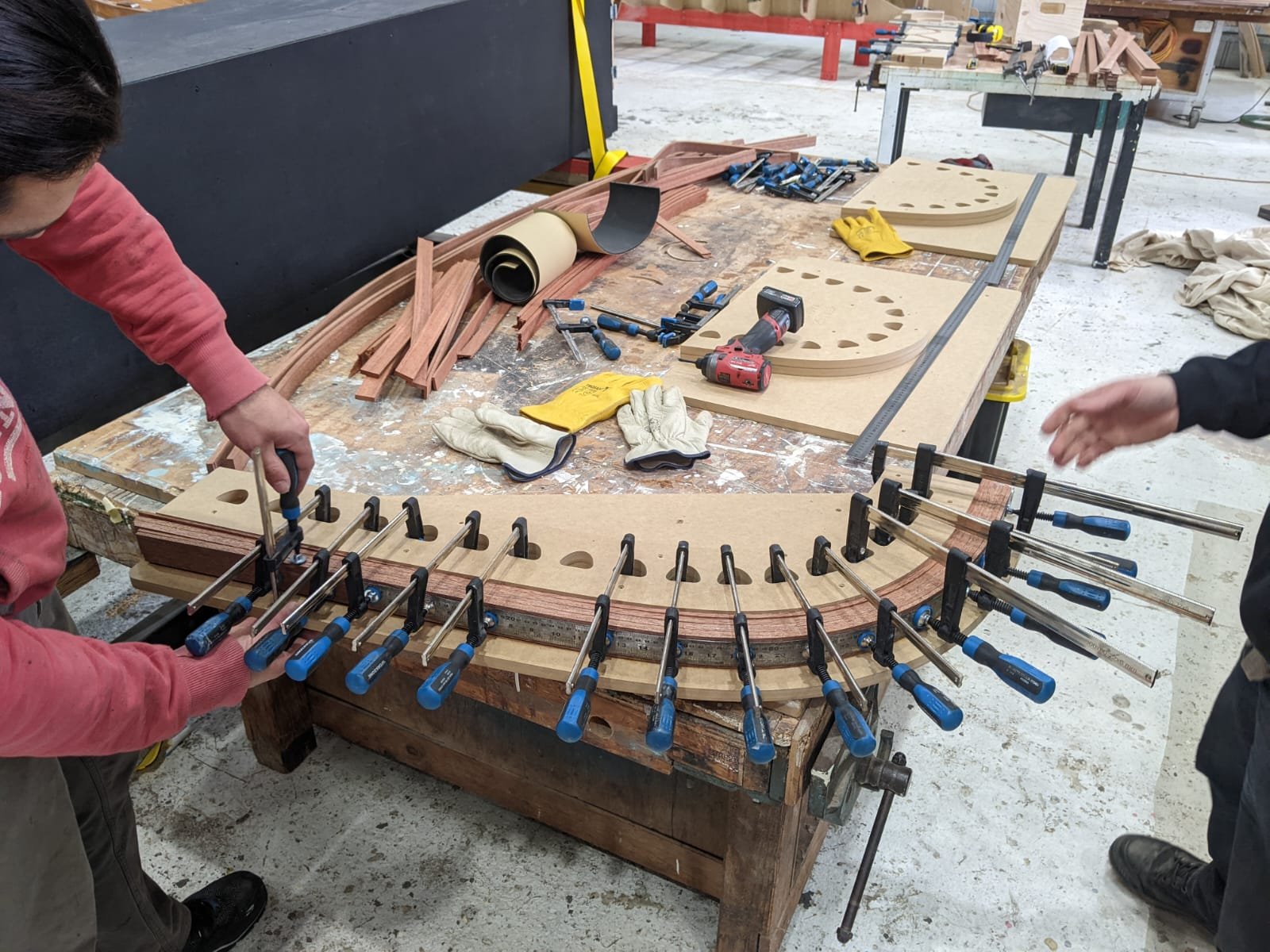

Curved profiles, laminating components, ring frames, knees, beams, formers and shaped timber parts where the geometry and material requirements are sufficiently defined.
Repair and Replacement Components
New components produced from drawings, full-size patterns, verified measurements or suitable existing parts. Damaged or distorted originals may require paid interpretation and redrawing before machining.

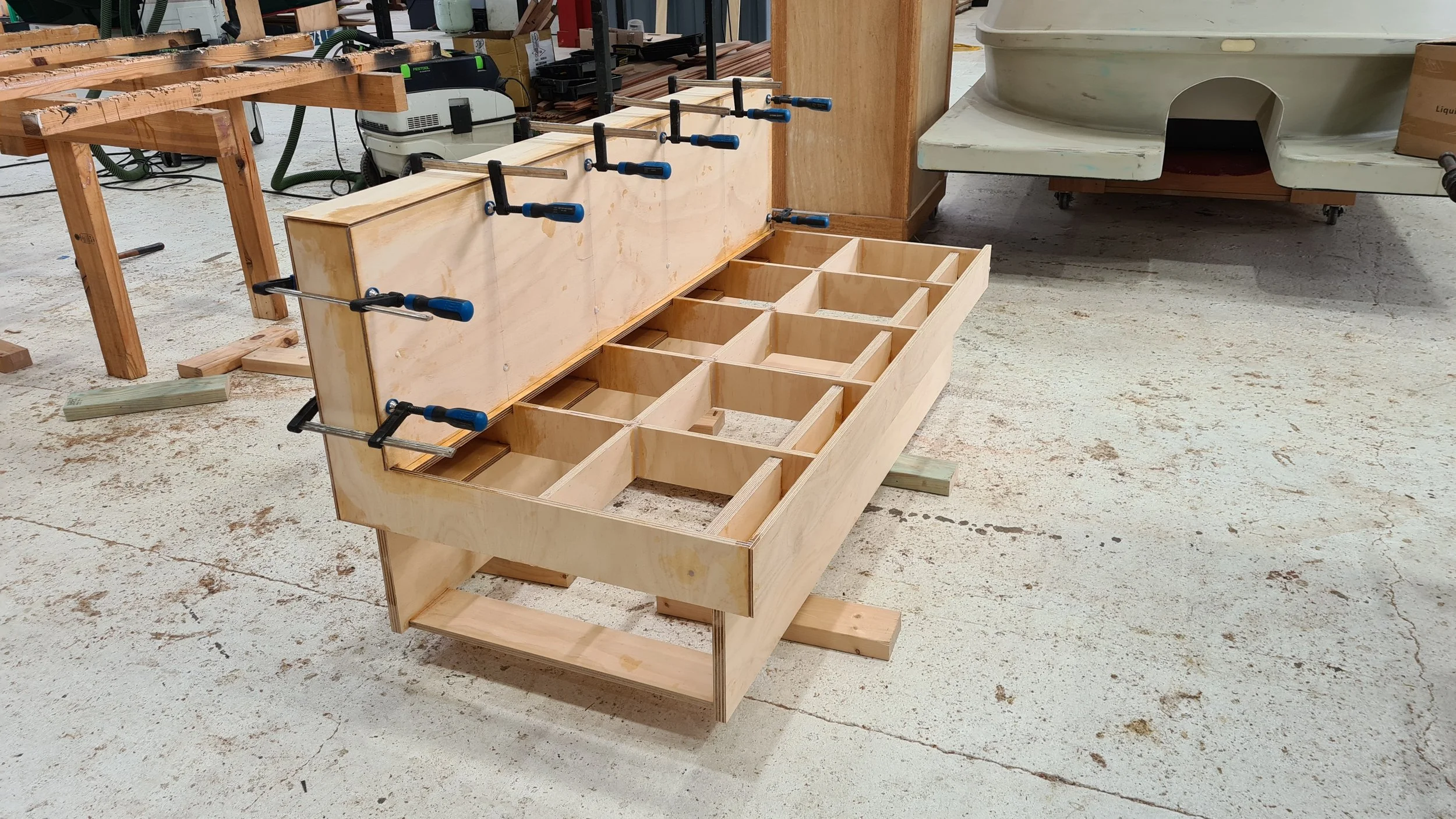

Patterns, Formers and Component Sets
Full-size marine patterns, temporary building components, assembly formers and clearly identified groups of parts for workshop or vessel construction.
Need a reusable routing, drilling or marking pattern rather than the final boat component? See Templates & Patterns page.
STARTING INFORMATION
What Information Do You Already Have?
You do not always need finished CNC files before contacting us, but the project must have dependable geometry, dimensions or approved design information before the final components can be produced.
Production Files Are Ready
Supply the latest CAD files with the material, thickness, quantities and machining instructions.
We can review the files, prepare the CAM, nest the parts and quote the machining.
The Boat Design Is Approved
You have approved plans, drawings or design files, but the parts still need to be prepared for CNC production.
File preparation, part separation, machining details, numbering and nesting can be reviewed and quoted as paid work.
A Pattern or Existing Component Exists
A full-size pattern or existing component may provide useful starting geometry.
The part must be complete and stable enough to measure. Damage, distortion and missing areas may prevent it from being a reliable production reference.
The Project Is Still an Idea
An image, rough sketch or general boat concept is not enough to produce finished marine components.
Vessel design, structural decisions and naval architecture need to be resolved before CNC production begins. Once the design is sufficiently defined, we can review the production work required.
Boatbuilding Experience Applied to Detailed CNC Kits
WOODEN BOAT KITS
Williamstown CNC Works has experience developing and producing detailed wooden boat kits, including custom projects prepared with boatbuilders and marine designers.
We hold production rights for selected boat designs under licence and can also review authorised design files supplied by customers, designers and rights holders.
Depending on the project, kit-production work may include:
preparing approved geometry for CNC production
separating and organising parts
dividing oversized components where required
adding specified locating and assembly details

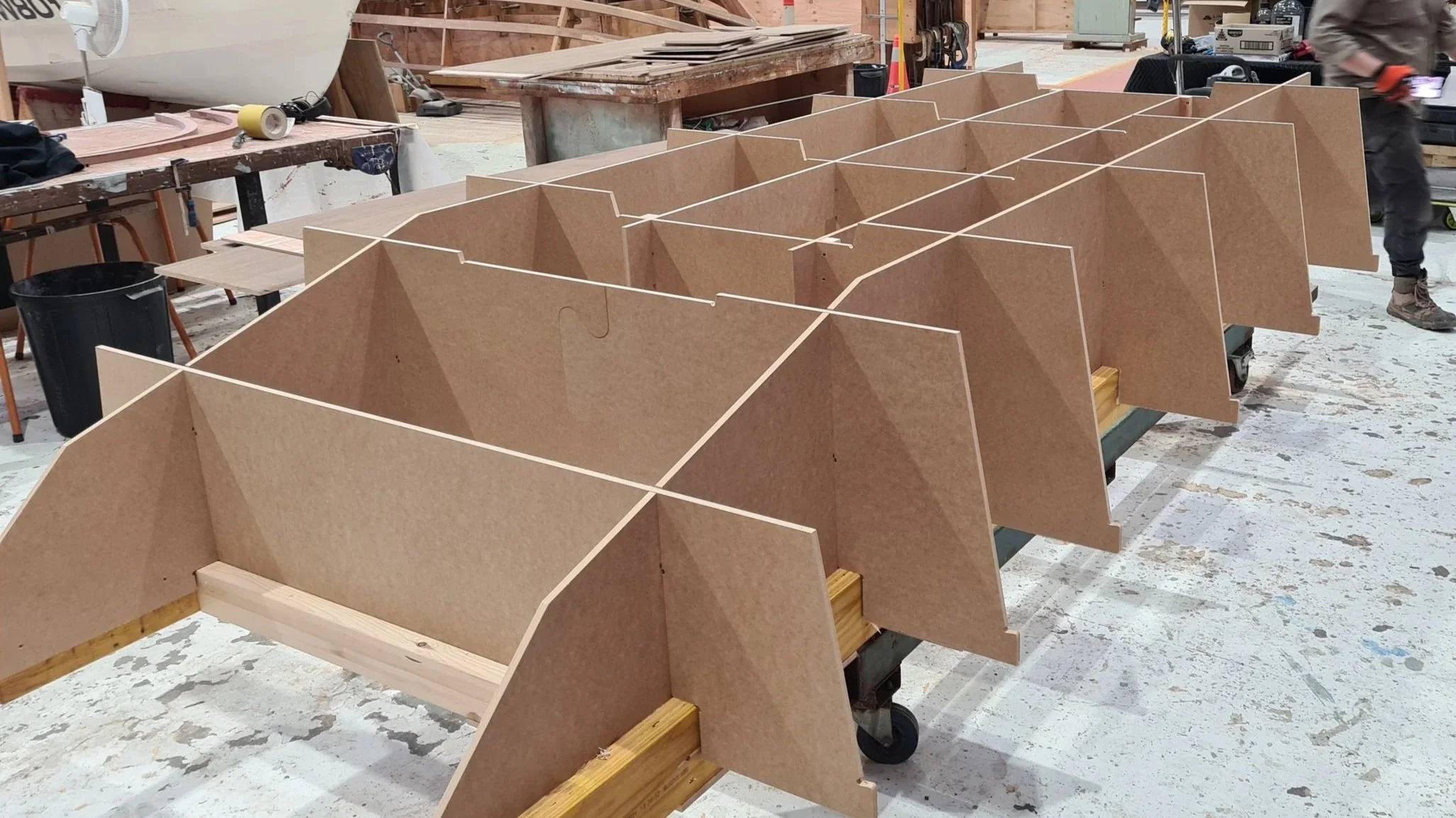

preparing temporary building frames or formers
nesting parts across sheets
numbering port, starboard and matching components
grouping parts into useful build stages
test cutting and revising the production set
Developing a practical kit from a boat design can involve substantial CAD and production preparation. This work is quoted separately from ordinary cutting.
Not every kit or marine project can be shown publicly. Some work is completed under confidentiality agreements or controlled file-access arrangements for designers and commercial clients.
Customers supplying third-party designs must have permission to provide and reproduce the relevant files.
TRADE PRODUCTION SUPPORT
CNC Support for Boatbuilders, Designers and Marine Trades
WCW can act as an external CNC and production workshop for marine businesses that have defined work but do not want to maintain their own router, programming system or additional production space. We can work directly with boatbuilders, shipwrights, repairers, marine joiners, designers and kit suppliers.
Marine trade support may suit businesses requiring:
project-specific boat components
confidential production from controlled files
test parts and first-off components
replacement or updated component sets
short production runs
repeat parts from stable files
white-label or behind-the-scenes CNC production
assistance preparing approved designs for manufacture
Suitable Trade Relationships
For useful review, supply:
current files or drawings
design revision
material and thickness
part quantities
port and starboard identification
critical dimensions and datums
required machining
any kit grouping or labelling requirements
required completion date
Changes to the design, quantities or material after quoting may require the production work to be reviewed again.
Production Information We Need
For repeated marine parts or ongoing kit production, stable files can move into a more efficient repeat-manufacturing pathway. See Small-Batch CNC Production
MARINE PRODUCTION DETAILS
Details That Need to Be Clear Before Cutting
Marine components rely on surrounding structure and assembly information that may not be obvious.
The following details affect the result.

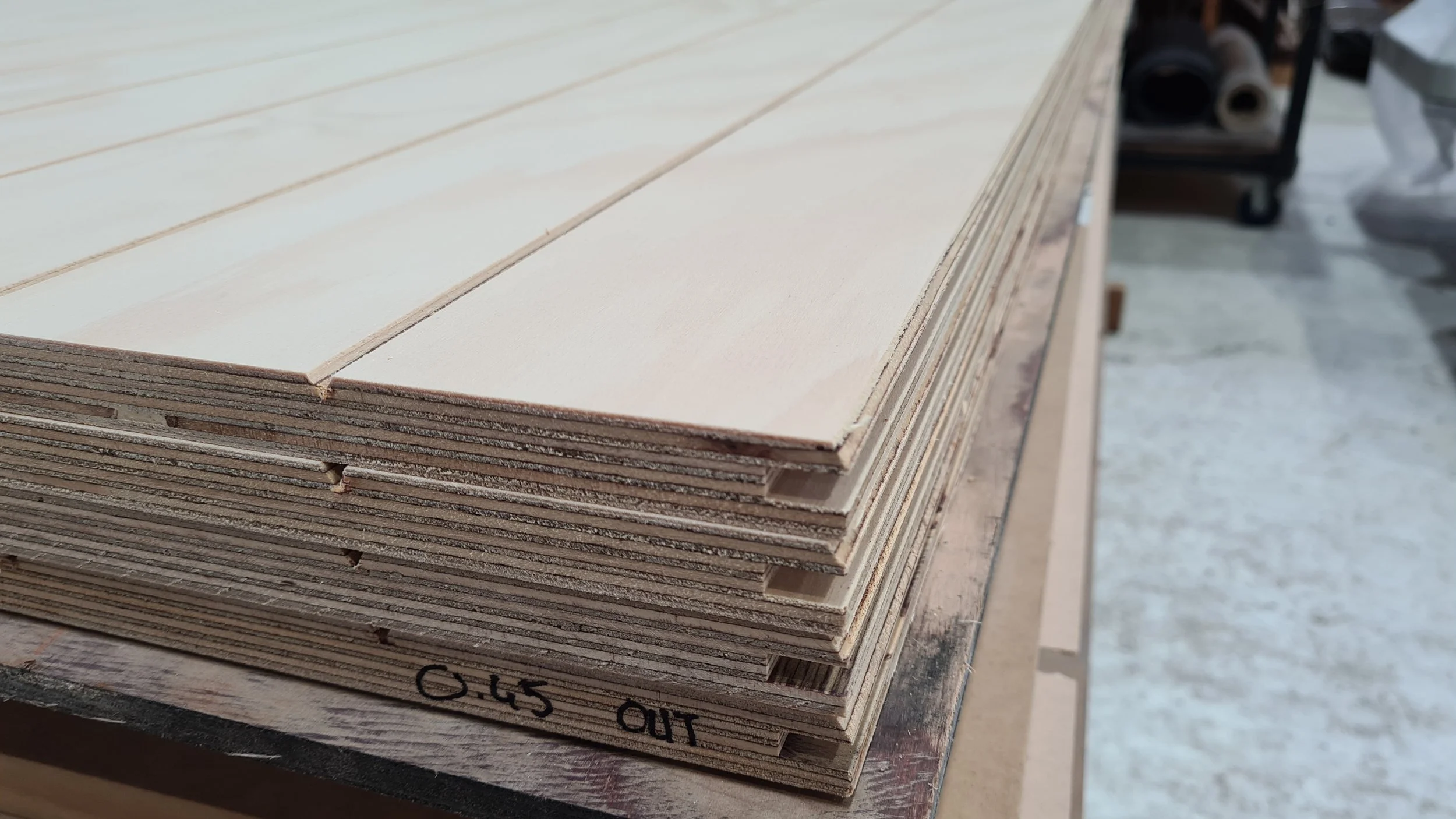

Material and Actual Thickness
Specify the material type, grade and nominal thickness. Actual sheet thickness can affect slots, rebates, joins, fitted parts and mating components.
Face and Grain Direction
Identify visible faces, grain direction, bend direction and any sheet orientation that must be maintained during nesting.
Port, Starboard and Orientation
Clearly identify port and starboard parts, mirrored components, inside and outside faces, forward and aft orientation, and any parts that must not be reversed.
Stations, Datums and Reference Geometry
Supply the centreline, station, baseline, reference edge or mating geometry needed to understand how the component relates to the rest of the vessel.
Machining and Fitted Details
Mark through-cuts, pockets, rebates, slots, holes, bevel information and any assembly details that affect the CNC work. Test pieces may be recommended for fitted joints or uncertain material thickness.
Part Names and Revisions
Each part should have a clear name or number. The current revision, quantity and any port or starboard versions should be easy to identify before production begins.
WCW reviews the supplied production information for practical machining. This does not replace design, structural or regulatory approval by the customer or their appointed marine professional.
Boatbuilding and Marine Frequently Asked Questions
-
Yes, where approved production geometry, material information and machining requirements are supplied.
The customer, boatbuilder or appointed designer remains responsible for the structural design, material specification and final approval of the components.
-
Possibly.
Some plans include suitable digital production files, while others are intended only for manual lofting or construction.
We need to review the plan format, available geometry, licence conditions and level of file preparation required before quoting.
-
A suitable existing component can sometimes be measured and redrawn.
The component must be stable and complete enough to provide dependable reference geometry. Rotten, distorted, modified or incomplete parts may not accurately represent the required replacement.
Measuring and redrawing are quoted separately from machining.tem description
-
WCW has experience developing and producing detailed wooden boat kits and holds production rights for selected designs under licence.
A dedicated Boat Kits page will provide more information about publicly available designs and ordering pathways.
We can also review authorised kit files supplied by customers, designers and rights holders.
-
We can assist with production development where the vessel design is already approved and sufficiently defined.
Preparing a practical kit may involve part separation, joining details, numbering, sheet nesting, temporary building components and test cutting.
This is paid CAD and production-development work and is quoted separately.
-
Yes.
WCW has experience working with confidential marine projects, secured files and controlled design information.
Project names, files and images are not published without permission.
-
The customer or rights holder must confirm that they have permission to supply and reproduce any third-party plans, files or protected design information.
WCW producing the parts does not transfer or establish design ownership.
-
A PDF or drawing may provide useful reference information, but it is not always production geometry.
Where the information is complete and dimensionally reliable, we may be able to redraw or prepare the parts as paid work.
Incomplete or unverified drawings may require further information from the customer or designer.
-
Yes, where the required shape, material, thickness and final geometry are clearly defined.
This may include curved profiles, ring frames, laminating components, formers, knees, beams and other shaped parts.
Some fitted or laminated components may require test pieces or separate workshop preparation.
-
Material supply can be included where the required type, grade and thickness are confirmed.
Availability varies, and we do not substitute a specified marine or structural material without approval.
Customers may also discuss supplying their own suitable material.
-
Williamstown CNC Works is a WEST SYSTEM epoxy distributor.
Selected core resin, hardener, fillers and related products may be available from the Williamstown North workshop, with specialist products ordered where required.
Collection is by arrangement.
-
Our normal service is workshop-based component production.
Site measurement, marina attendance, removal, installation, assembly and finishing are not automatically included.
Selected additional work may be considered where it is practical and specifically quoted.
-
Stable production information may be retained for later stages, replacement components or approved repeat production.
Future work must still be checked against the latest revision, material, quantities and design authority before machining.
Send Your Boatbuilding or Marine Project Details
Upload the current files, drawings, plans, patterns or reference information and tell us what needs to be produced.
We will review the starting information and identify whether the work is ready to quote, requires paid production preparation or needs further design information first.
